ARES 2713

ARES 2713 - 1 ARES 2713 - 2
Mounted pneumatic seed drill.

Pneumatic mounted seed drill. Its main characteristic is that it has a resin hopper of great resistance, available in capacities of 1.600 or 2.000 liters. It has many options to adapt it to the necessary terrain and cultivation.

The sowing train can be equipped with different types of arms and can have 4, 4'5, 5 or 6 meters of working width.



Tine coulters Suffolk coulters Discs Double disc PT coulter











  400 450 500 600
Rows 32 36 40 48
Working width (m) 4 4,5 5 6
Transport width (m) 3,05 3,05 3,05 3,05
Rows spacing (cm) 12,5 12,5 12,5 12,5
Wheels / Tyres 10.0/75-15,3 10.0/75-15,3 10.0/75-15,3 10.0/75-15,3
  • Sieve
  • Hydraulic track markers
  • Calibration kit for seed dosing test
  • Mechanical fan with PTO Shaft 1000 rpm. or with hydraulic fan
  • Monitor with: hectare counter, fan r.p.m, metering device alarm and seed level sensor
  • Rear harrow in three sections
  • Indicators and LED working lamps
  • Optional triple leveler
  • Control wheels in folding parts. (Except in 4m)
  • Optional control wheels in central part of the seeding equipment
New!

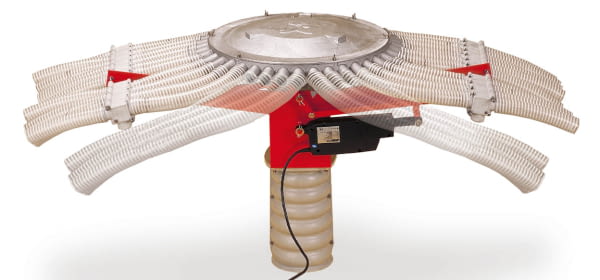

Seed hoses shut off system in folding parts

Seed hoses shut off system in folding parts

Ref. Tancament sortida parts plegables
New!
Grading machine - Smooth or with springs

Grading machine - Smooth or with springs

Ref. Nivelladora llisa o amb molles
New!
Scrapers in depth control wheels

Scrapers in depth control wheels

Ref. Rascadors a rodes de control de profunditat
New!
Independent hydraulic circuit kit

Independent hydraulic circuit kit

Ref. Kit circuit hidràulic independent
New!
Pre-emergence markers

Pre-emergence markers

Ref. Traçadors de pre-emergència
New!
Depth control wheels on disc models

Depth control wheels on disc models

Ref. Roda control profunditat per a model amb discs
New!
Seed hoses closing system in folding independent parts

Seed hoses closing system in folding independent parts

Ref. Tancament sortida parts plegables independents
New!
Electrical half width shut off of Left side - Ares

Electrical half width shut off of Left side - Ares

Ref. Tancament mitja màquina Esquerra - Ares
New!
Electrical half width shut off of Right side - Ares

Electrical half width shut off of Right side - Ares

Ref. Tancament mitja màquina Dreta - Ares
New!

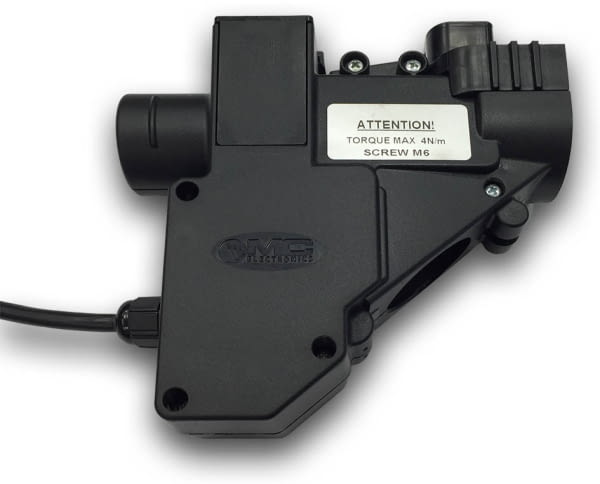

Tramlines symmetric 2+2 valves

Tramlines symmetric 2+2 valves

Ref. Tramlines simètric
New!
Tramlines assymetric 2+2 valves

Tramlines assymetric 2+2 valves

Ref. Tramlines asimètric
New!
Cap head for distributor

Cap head for distributor

Ref. Tap capçal distribuïdor
New!
Artemis Lite electric motor controller and radar

Artemis Lite electric motor controller and radar

Ref. Controlador motor elèctric i radar Artemis Lite
New!
Complete control metering device system with electrical motor and Radar P/GPS Artemis

Complete control metering device system with electrical motor and Radar P/GPS Artemis

Ref. Controlador complet ARTEMIS LITE RDS P/GPS
New!

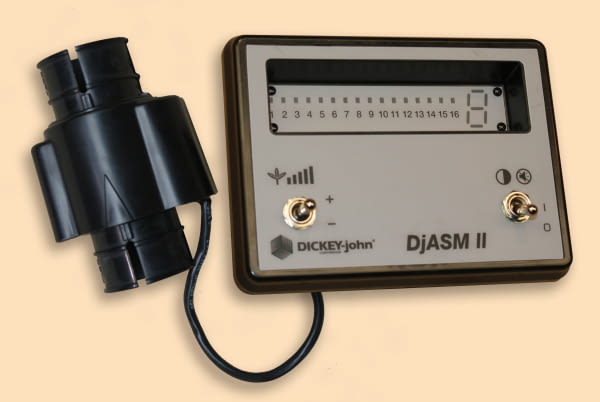

Seeding controller 48 rows

Seeding controller 48 rows

Ref. Controlador de sembra
